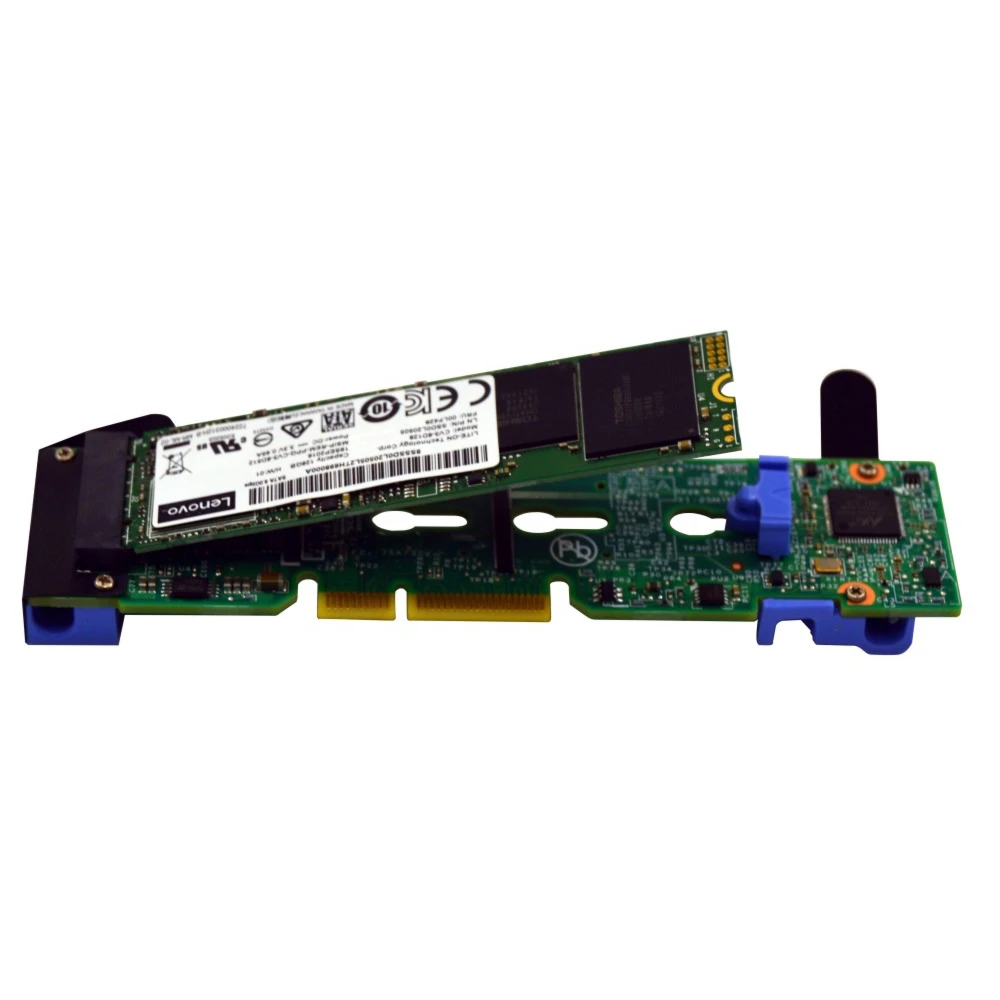

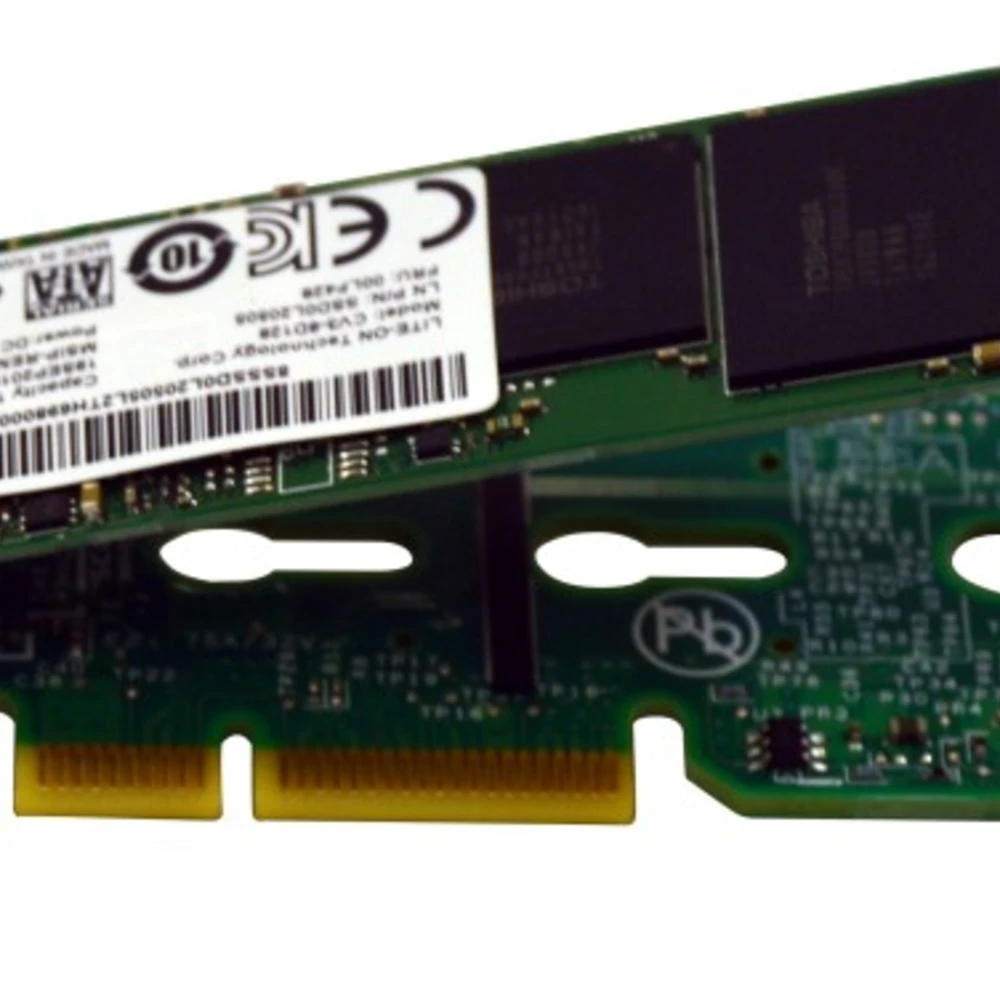

ThinkSystem M.2 with Mirroring Enablement Kit (contains the Dual M.2 Adapter, supports 1 or 2 drives)
Lenovo 7Y37A01093. Host interface: M.2, Output interface: M.2. Product colour: Black, Blue, Green. RAID levels: 0, 1, JBOD. Weight: 18 g
M.2 is a solid-state drive (SSD) form factor primarily used as an operating system boot solution. Lenovo ThinkSystem servers support M.2 drives with the addition of a supported M.2 adapter.
The M.2 drives install into an M.2 adapter which in turn is installed in a dedicated slot on the system board of the ThinkSystem server. With two M.2 drives configured, the drives are configured by default as a RAID-1 mirrored pair for redundancy.
There are two M.2 adapters supported:
- Single M.2 Adapter, which supports one M.2 drive; available as the ThinkSystem M.2 Enablement Kit
- Dual M.2 Adapter, which supports one or two M.2 drives; available as the ThinkSystem M.2 with Mirroring Enablement Kit
